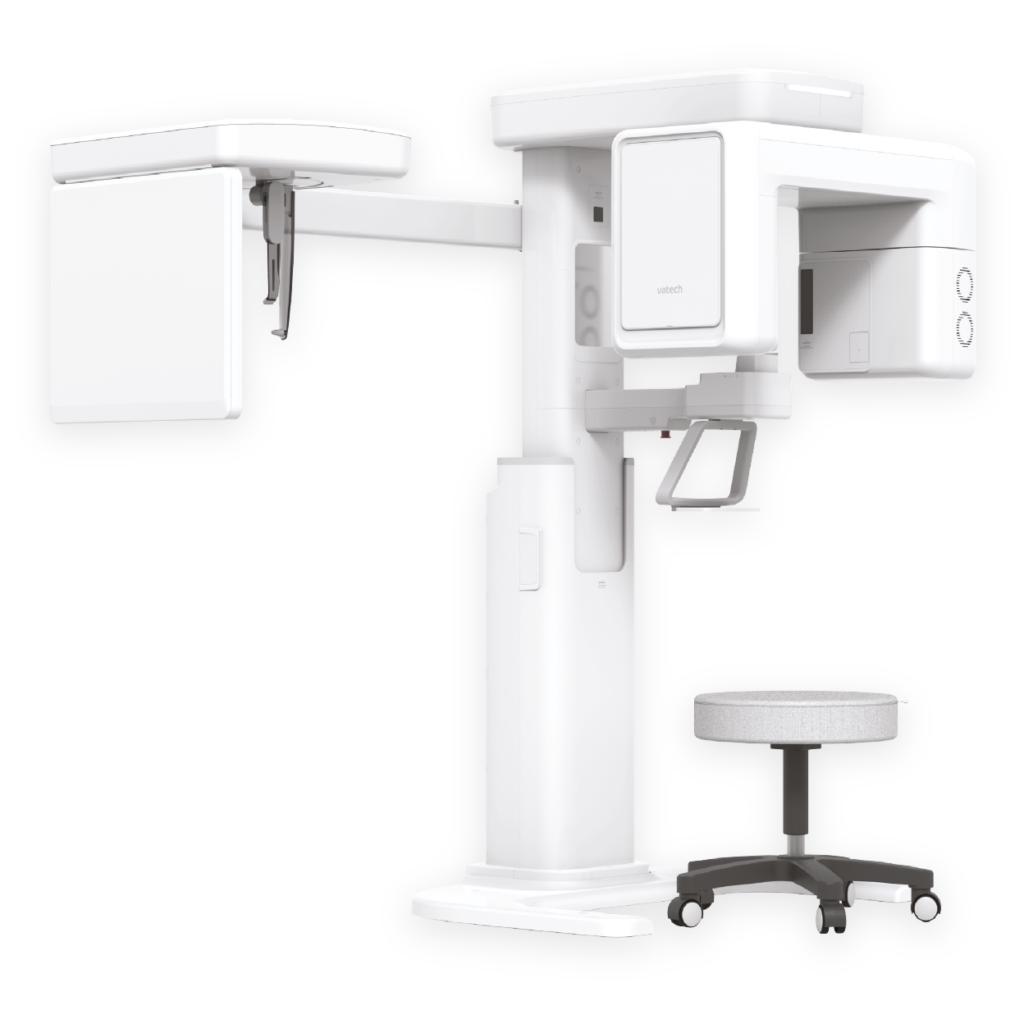

VATECH GREEN X (16×9/18×15)
Its advantages:
- Reduction of almost 60% of the dose.
- Protection of the patient and practitioner.
- 3D scanner.
- Ultra-fast acquisition time.
- 3D acquisition fields: 4x4/5x5/8x5/8x8 / 12x9/16x9/16x11/ 18x15 (in cm)
- Functions: CBCT + Pano + Model Scan + (Cephalo.)
- Focal point size: 0.5 mm (IEC 60336)
- GREEN X 16 voxel size: 4x4: 0.5 mm; 5x5: 0.08 / 0.12 mm; 8x5 / 8x8: 0.12 / 0.2 mm; 12x9 / 16x9: 0.2 / 0.3 mm;
- Acquisition time: Pano: 4.0 / 14.1 sec Ceph: 1.9 sec / 4.9 sec CBCT: 2.9 sec / 9.0 sec
- Tube voltage: 60 - 99 kVp / 4 ~ 16 mA.
CONE BEAM VATECH A9 (9×8)
8X8 FOV:
8x8 images that enable correct diagnosis and treatment planning, including both the maxillary and mandibular areas, in a single scan. It is useful for performing implant surgeries.
Minimize Artifact Movement with CEPH Technology:
The next phase of cephalometric technology, Vatech Rapid Ceph minimizes artifact movement, helping to speed up the diagnostic process while providing the highest quality digital images.
