Radio panoramique 2D PaX-i VATECH

Description

VATECH AND THE ORTHO PREMIUM SOLUTION

Autofocus system: Compensates for body movements and poor positioning
Child mode – Available in Ultra HD
Exposure time: Normal: 10.1 seconds / HD: 13.5 seconds

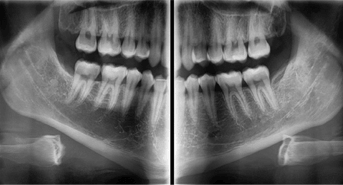

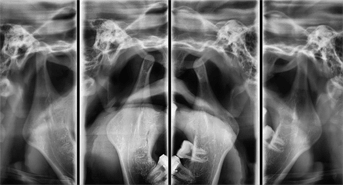

Different acquisition modes: TMJ open & closed / Bite-wing centered on the incisors / right side / left side / Lateral & frontal sinus Reduction of canine and premolar overlap

Superior image quality

Optimal image for precise diagnosis. – Specialized sensors for Pano and Ceph – Simplified workflow and extended sensor life

Two integrated sensors

Specialized sensors for Pano and Ceph – Simplified workflow and extended sensor life

User-oriented software, EzDent-i

This is the complete solution for your consultation

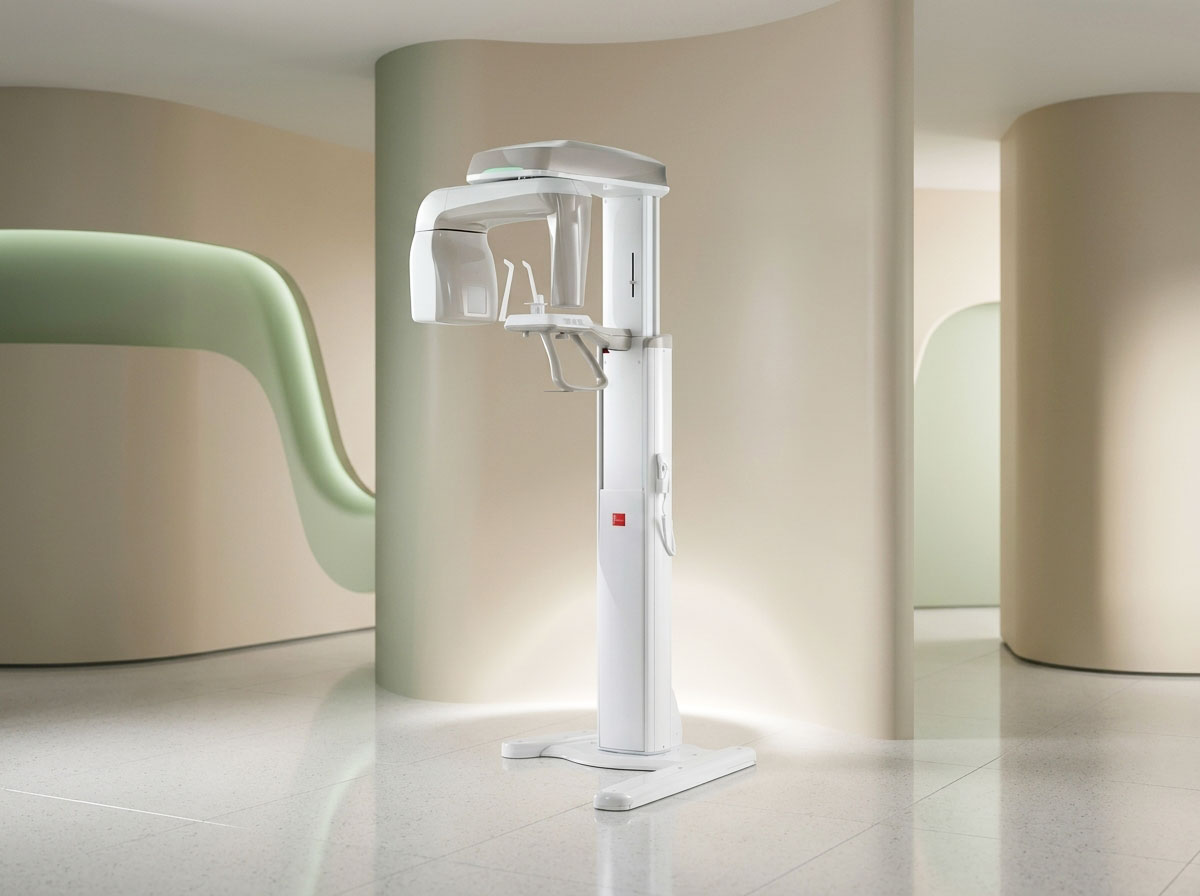

Modern and compact design

Increase the design value of your clinic Save installation space in your clinic

ADVANCED IMAGING SOLUTION FOR ACCURATE DENTAL CARE DIAGNOSIS

Pax-i provides the most accurate and highest quality panoramic image by innovating the imaging process and VATECH’s accumulated dental imaging experience. It improves your diagnostic accuracy with increased treatment planning and patient satisfaction.

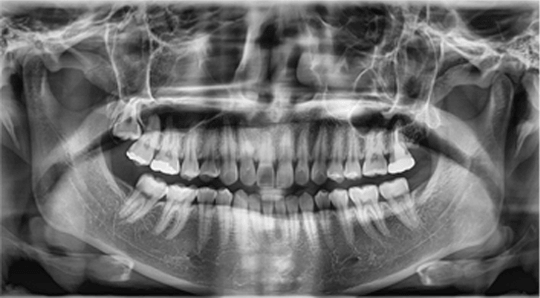

New panoramic image standard

The clear and sharp panoramic image brings you better diagnostics. Enhanced details, especially in the anterior and dental roots, can be viewed. These high-quality images will become the new standard for panoramic imaging.

Make your diagnosis easy and efficient with different capture modes

Pax-i has different capture modes to meet your diagnostic needs. You can choose any capture mode according to the purpose of your needs.

ORTHO OPTION

Rapid acquisition in 1.9 seconds

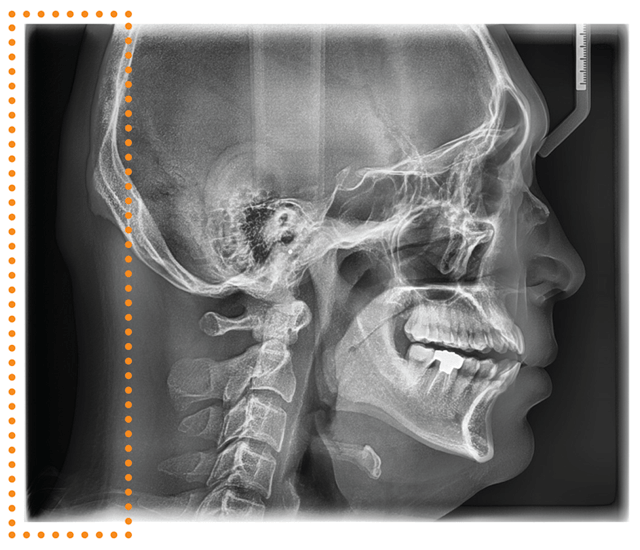

Optimal image size (28 x 26 cm) for ideal diagnosis (Full Lateral) Image 30% larger than a traditional scanning solution Simple
patient positioning, no sensor manipulation: 2 or 3 sensors delivered as standard depending on the version

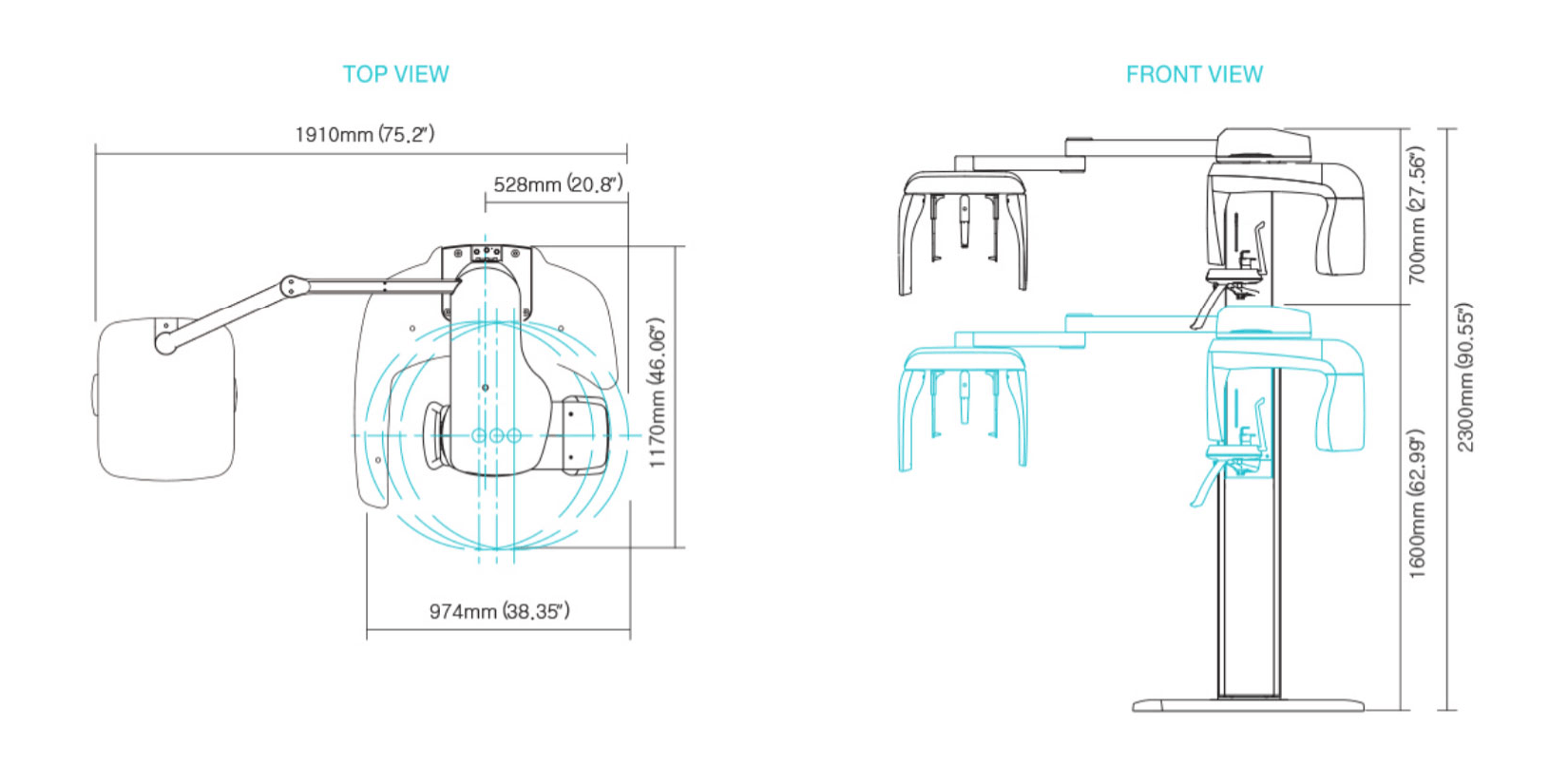

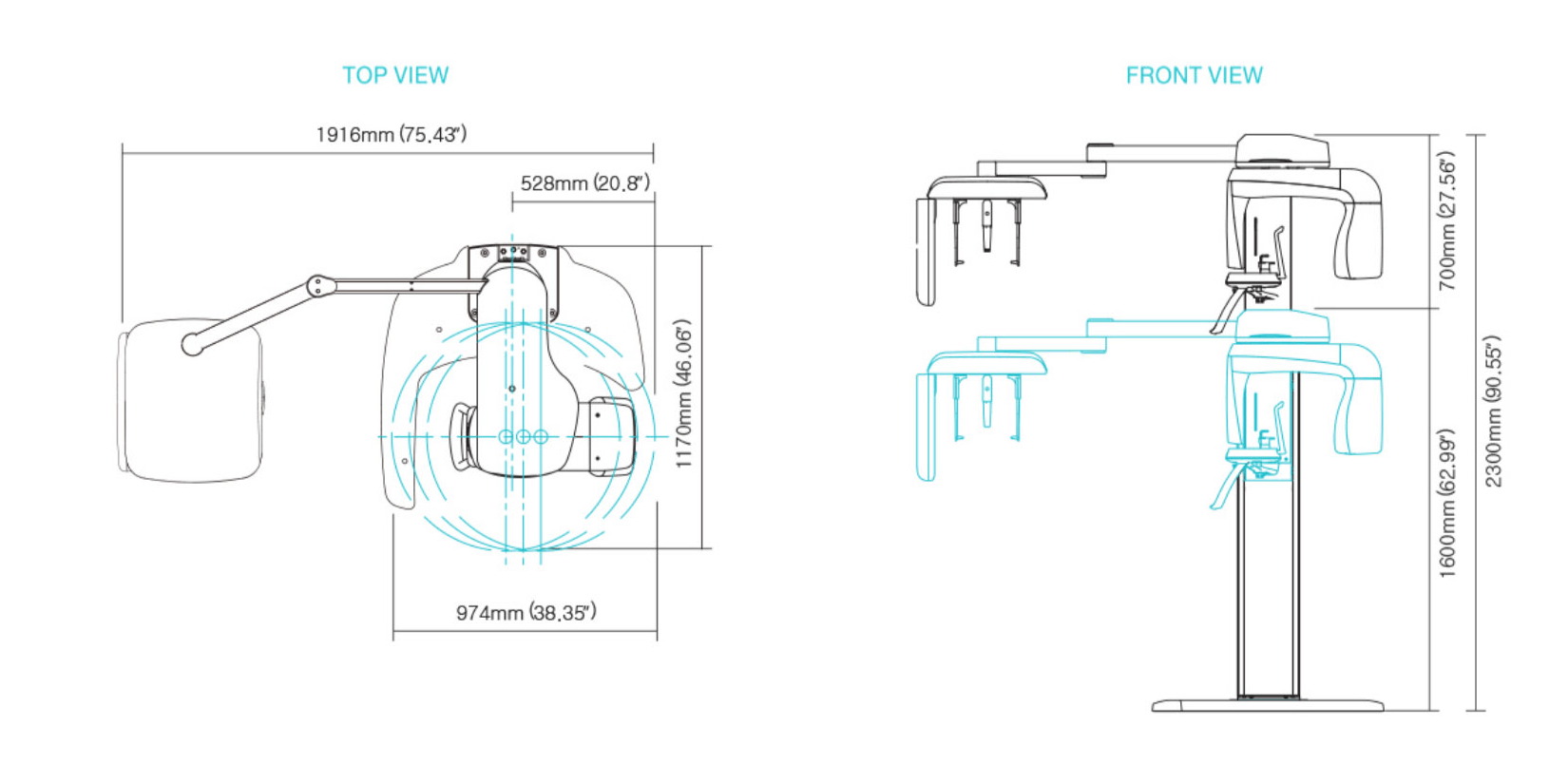

Minimum footprint: 1930 mm wide

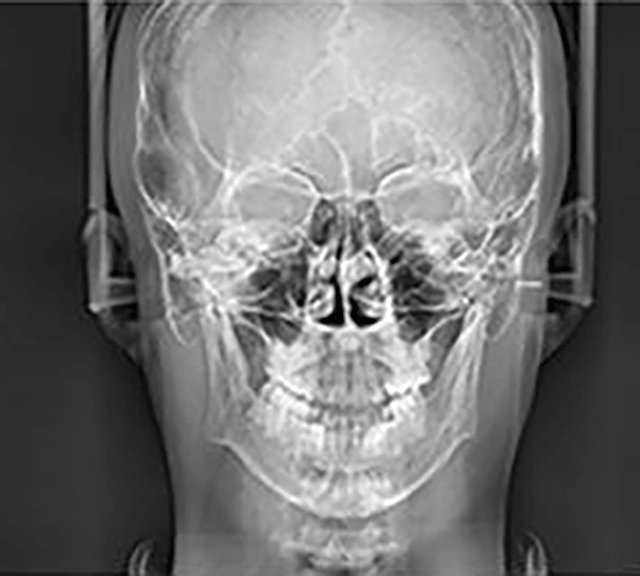

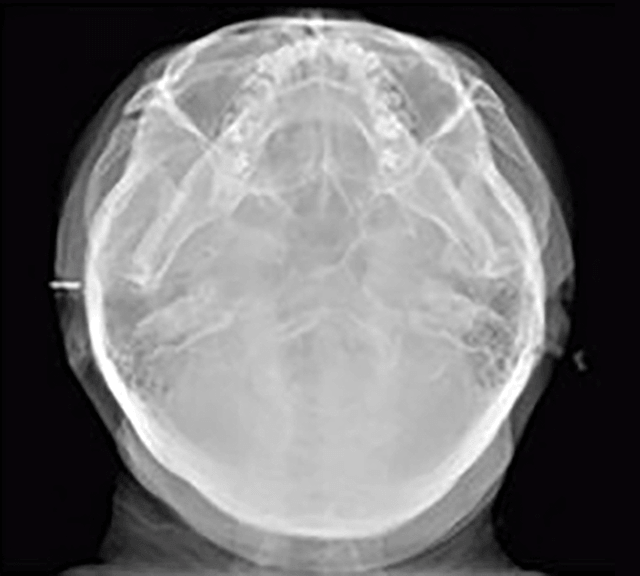

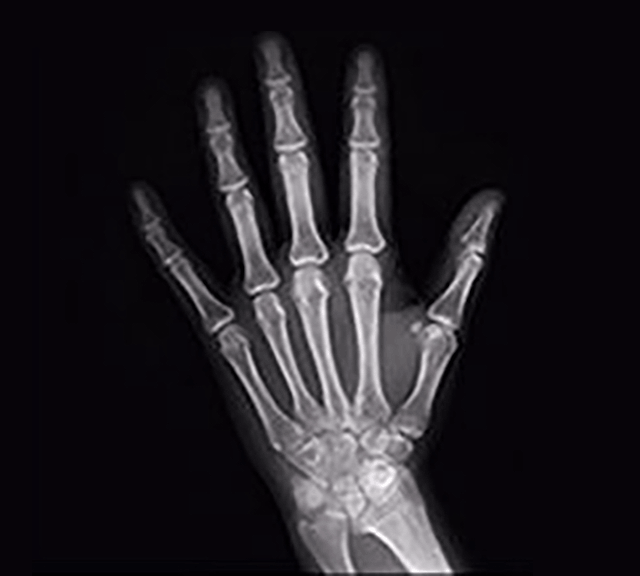

Different acquisition methods possible: Frontal / Carpus / SMV (Submentovertex)

CEPH SCAN OPTION

Scanner scanning technique

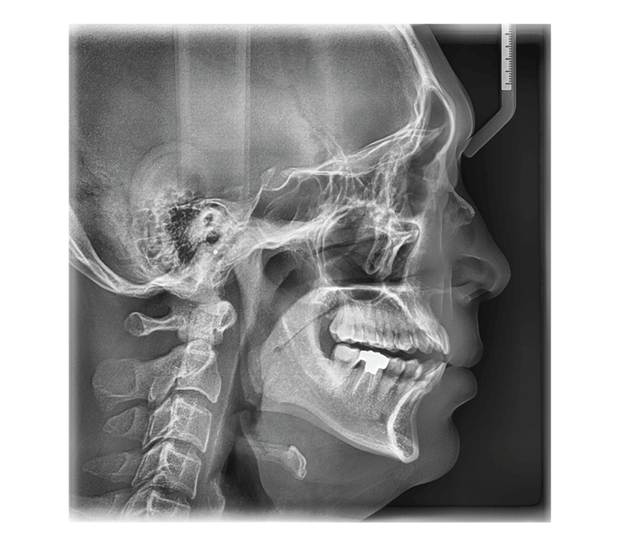

Image size (21 x 23 cm) for essential diagnosis
No manipulation of the sensor between panoramic and cephalometric acquisition
Acquisition time: 12.9 seconds
High Definition image quality

TECHNICAL SPECIFICITIES

PaX-i
Functions: Pano + (Cephalo)
Acquisition time: Pano (HD: 13.5 sec – Normal: 10.1 sec) / Ceph (Scan: 12.9 sec)
Focal point: 0.5 mm
Tube voltage: 50-90 kVp
Voltage of the current: 4-10 mA
Gray level: 14 bit
Patient positioning: Standing / Accessible to people with disabilities
