Description
1 CLICK, 2 SCANS

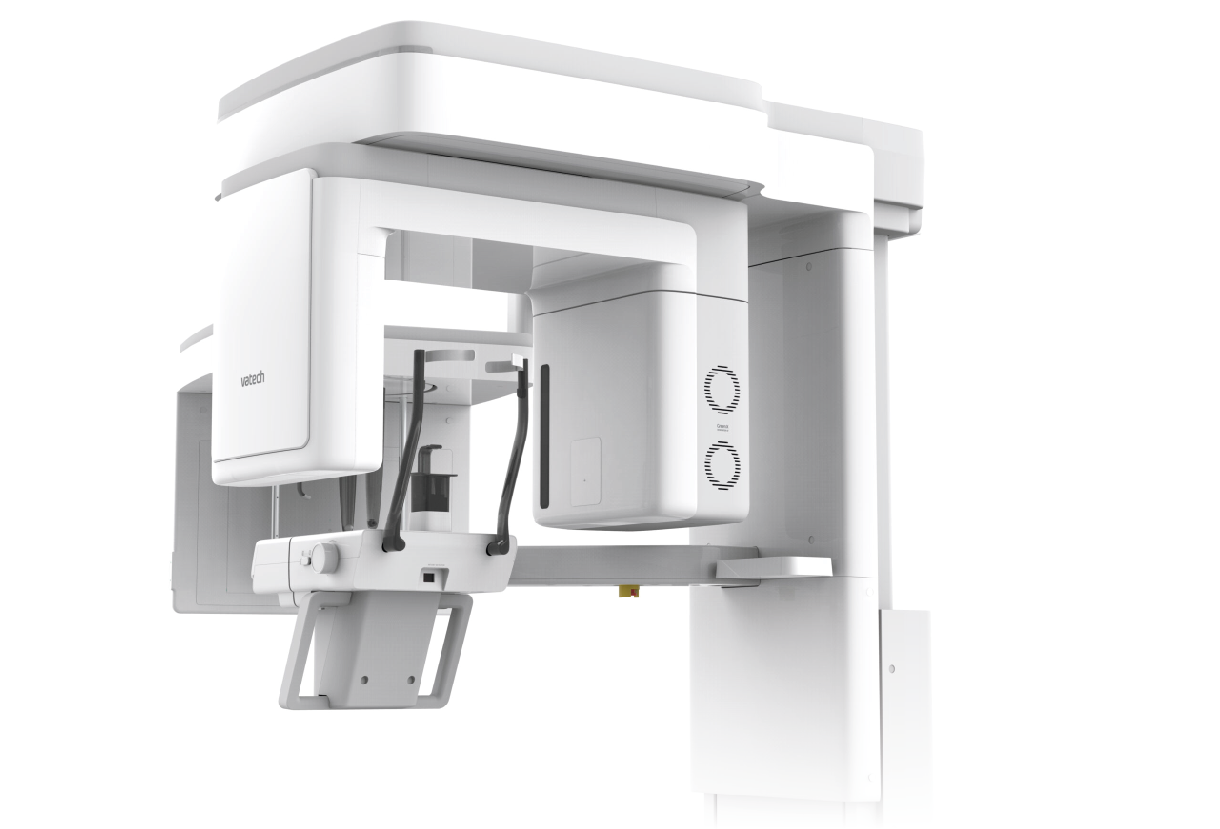

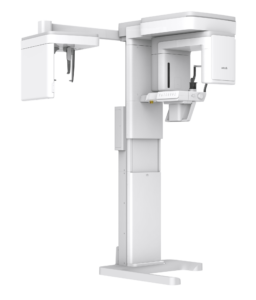

Green X is a 4 in 1 digital X-ray imaging system that integrates Pano, Ceph, CBCT and Pattern Scan. With Vatech’s extensive experience in dental imaging, the Green X provides high quality images with lower radiation by combining image processing. This will improve the accuracy of your diagnosis and lead to better treatment planning and greater patient satisfaction.

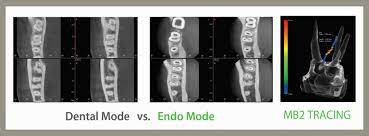

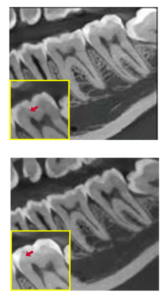

ENDO mode with high resolution
With its volume mode of 4 cm x 4 cm and voxel size of 49.5 microns, Endo mode will optimize the treatment of highly targeted regions of interest. It is ideal for endodontics because the dentist can obtain an extraordinary image in a high resolution voxel size.
ULTRA-FAST ACQUISITION TIME
Due to its acquisition time, the Green X minimizes motion artifacts and allows for a faster workflow. It produces superb diagnostic images, which will be a source of pride for any dental practice.
By focusing on the highest quality of patient care, Vatech strives to improve the health and safety of your patients.

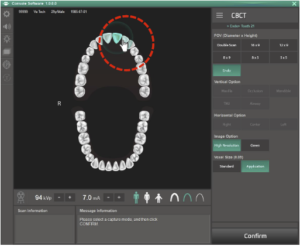

Individual tooth selection
Visualization of the maxilla/mandible in a single screen. The choice of having a scout view Selection possible in the message window.
Free field
From single implant to full arch, Insight Pan mode acquisition with the Green X allows you to freely define the area in which you wish to obtain multiple cuts. The choice is made by dragging the mouse. In terms of the dose emitted to the patient, it will be minimized. By focusing on the highest quality of patient care, Vatech strives to improve the health and safety of your patients.
3D scanner for models
Scanning 3D models allows users to store casts as digital models. By focusing on the highest quality of patient care, Vatech strives to improve the health and safety of your patients.

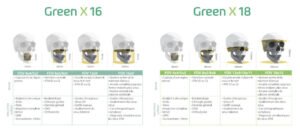

MULTI FIELD SELECTION
Green X offers a range of selectable fields of view. The Multi FOV option allows users to select the optimal FOV mode while minimizing exposure to areas that are not in the region of interest. The selection includes the following acquisition field sizes for diagnostic purposes: 18×15, 16×11, 16×9, 12×9, 8×9, 8×5, 5×5 and 4×4. These options cover the entire arch region, sinuses and left/right temporomandibular joint, and are suitable for most oral surgery cases and multiple implant surgeries.
ORTHO OPTION
Rapid acquisition in 1.9 seconds
Optimal image size (28 x 26 cm) for ideal diagnosis (Full Lateral) Image 30% larger than a traditional scanning solution Simple
patient positioning, no sensor manipulation: 2 or 3 sensors delivered as standard depending on the version
Minimum footprint: 1930 mm wide
Different acquisition methods possible: Frontal / Carpus / SMV (Submentovertex)
TECHNICAL SPECIFICITIES
3D acquisition fields: 4×4 / 5×5 / 8×5 / 8×8 / 12×9 / 16×9 cm Dimensions
: With Ceph (Without Base: 1905.5 mm (L) x 1374.9 mm (l) x 2315.4 mm (H)) – (With Base: 1905.5 mm (L) x 1374.9 mm (W) x 2345.4 (H)) / Without Ceph (Without Base: 1085.0 mm (L) x 1374.9 mm (W) x 2315.4 mm ( H)) – (With Base: 1085.0 mm (L) x 1343.5 mm (W) x 2345.5 mm (H))
Function: CT + Pano + Ceph + Scan models
Gray level: 14 Bit
Weight: Without Ceph 162.9 kg (359.12 lbs – Without Base) / With Ceph 217.9 kg (480.38 lbs – With Base)
Focal Point Size: 0.5 mm (IEC 60336)
Voxel Size: 4×4 (0.05 mm) / 5 ×5 (0.08mm; 0.12mm) / 8×5 – 8×8 (0.12mm; 0.2mm) / 12×9 – 16×9 (0.2mm; 0.3mm) :
Acquisition time: Pano (4.0 sec; 14.1 sec) / Ceph (1.9 sec; 4.9 sec) / CBCT (2.9 sec; 9.0 sec)
Tube voltage / Current: 60 – 99 kVp / 4 – 16 mA
